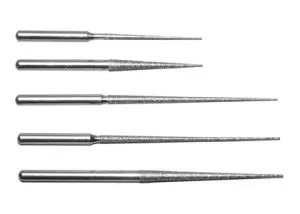

Pręt diamentowy stożkowy (średnica : Ø3.0 & 6.0mm)
Jednostka : mm
| ØD | T | θ° | ØB | L | Ziarnistość | Numer | |
|---|---|---|---|---|---|---|---|
| Ø1.8 | 25 | 3.1 | Ø3.0 | 50 | #150 | 18PL |  |
| Ø2.1 | 34 | 2.8 | Ø3.0 | 55 | #150 | 21PXL |  |
| Ø3.0 | 25 | 6.4 | Ø3.0 | 60 | #150 | 30PL |  |
| Ø4.8 | 26 | 9.6 | Ø3.0 | 55 | #150 | 48PL |  |
| Ø1.5 | 26 | 2.3 | Ø3.0 | 60 | #150 | 15PL |  |
| Ø2.0 | 48 | 1.9 | Ø3.0 | 70 | #150 | 20PXL |  |
| Ø2.3 | 40 | 2.7 | Ø3.0 | 65 | #150 | 23PXL |  |
| Ø2.5 | 45 | 2.6 | Ø3.0 | 70 | #150 | 25PXL |  |
| Ø3.0 | 38 | 4.2 | Ø3.0 | 70 | #150 | 30PXL |  |
| Ø6.0 | 33 | 10 | Ø6.0 | 60 | #120 | 60P10 |  |
| Ø6.0 | 28 | 12 | Ø6.0 | 60 | #120 | 60P12 |  |
| Ø6.0 | 23 | 14 | Ø6.0 | 60 | #120 | 60P14 |  |
| Ø6.0 | 21 | 16 | Ø6.0 | 60 | #120 | 60P16 |  |
| Ø6.0 | 17 | 20 | Ø6.0 | 60 | #120 | 60P20 |  |
| Ø10.0 | 19 | 30 | Ø6.0 | 60 | #120 | 100P30 |  |
