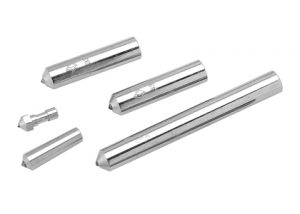

Natural Single Point Diamond Dresser
Single point diamond Dresser can be used for general sharpening, dressing, flat/cylindrical/centerless grinding and other related trimming operations.
Correct installation and use
| Diamond grit | Approximate weight (carats) | Number | Applicable grinding wheel (mm) |
|---|---|---|---|
| #5 #10 #15 |
0.18 0.20 0.25 |
DS005 DS010 DS015 |
Ø150x25or smaller grinding wheels |
| #20 #25 #33 |
0.35 0.50 0.75 |
DS020 DS025 DS033 |
Ø150~Ø300×25 |
| #50 | 1.0 | DS050 | Ø300~Ø450×25~40 |
| #75 | 1.5 | DS075 | Ø450~Ø600×50~100 |
| #100 | 2.0 | DS100 | Ø600 or bigger grinding wheels |
- Please specify the code and handle size or provide a detailed drawing when ordering.
