Metal Method Diamond and Boron Nitride Grinding Wheels

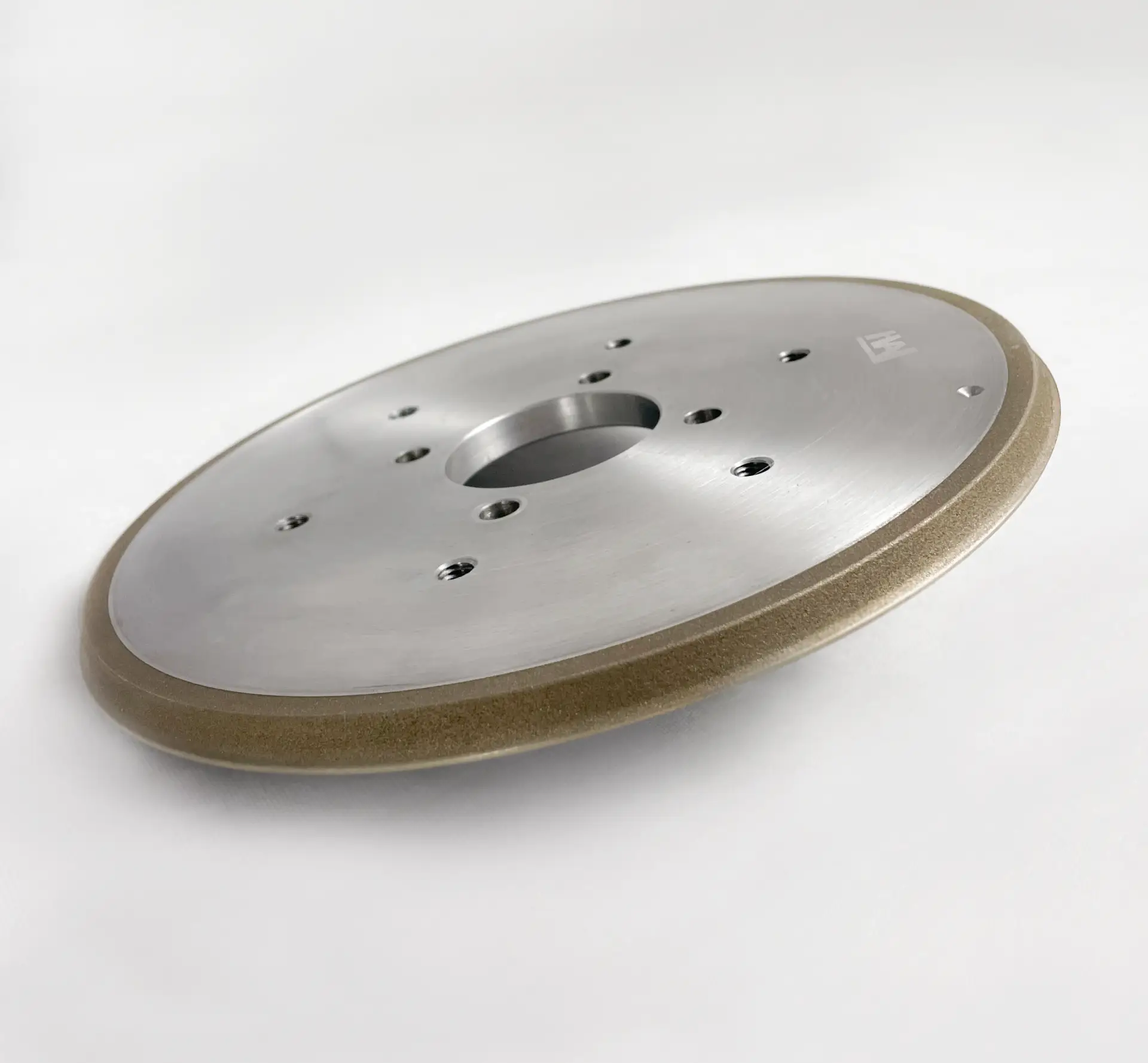

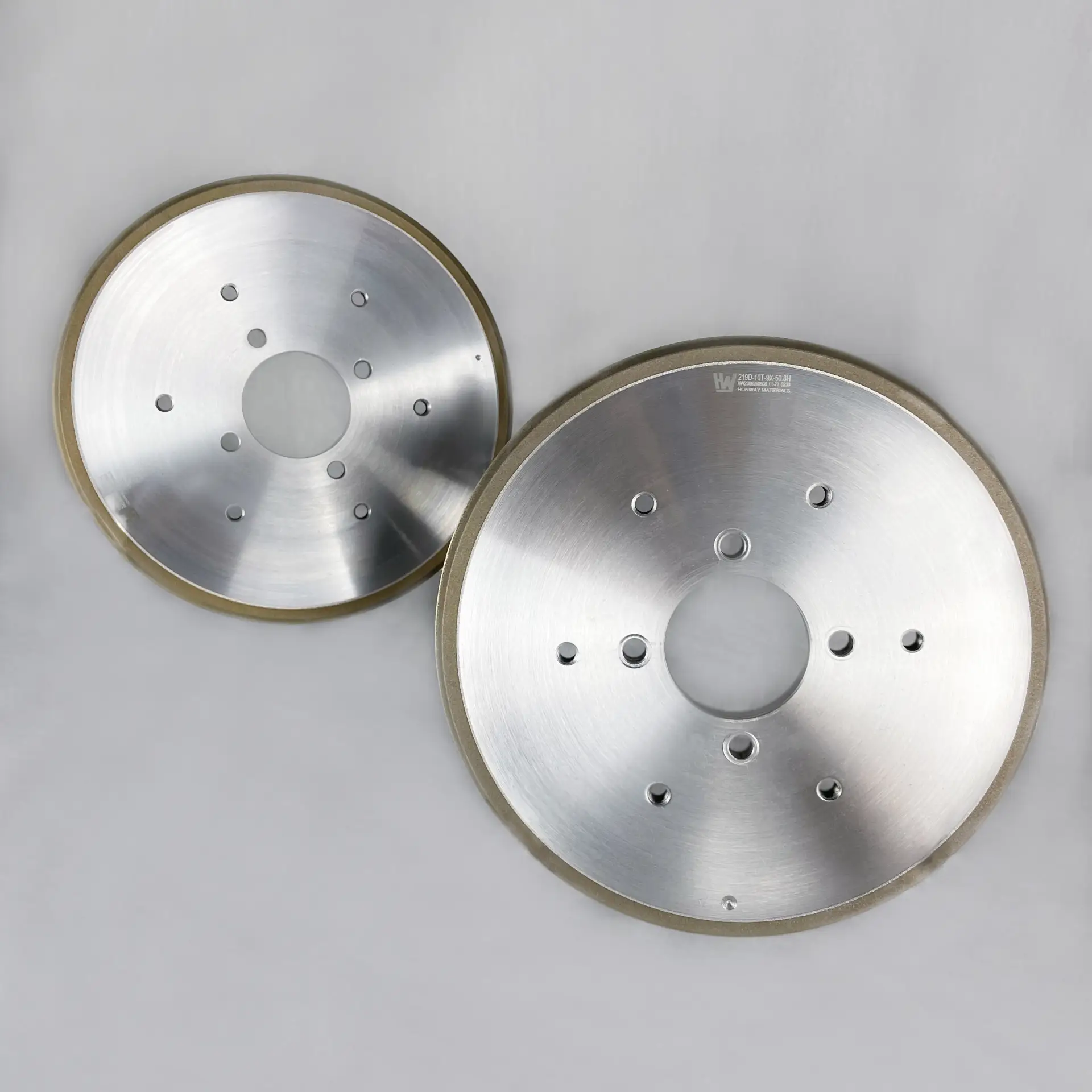

Metal bonded diamond and boron nitride grinding wheels

  • Metal grinding wheels are excellent in shape retention and abrasion resistance, have the best heat dissipation and rigidity, and can withstand large grinding stresses, and have a long service life when used for processing hard and brittle materials such as glass, ceramics, and semiconductor and electronic materials.
    It is often used for grinding super-hard alloys and for molding and contouring operations where the shape of the grinding wheel must remain unchanged.

Metal Grinding Wheel Applications and Materials

  • It is used for hard alloys such as tungsten steel and other hard alloys for strong molding, and can also be used for hard and brittle materials (ceramics, glass, quartz, stone, sapphire, silicon, etc.) for grinding and processing.

HONWAY can provide customized services.

We can make the most suitable metal method diamond and CBN grinding wheels for you.

Please specify the following when ordering grinding wheels.

  • The shape of the grinding wheel and the dimensions of each part: such as1A1、14A1
  • Type of abrasive: Diamond or Boron Nitride
  • Grit: e.g:#150
  • Concentration: e.g:C-75
  • Binders: e.g. resin binders or metal binders.
  • Cooling method: dry grinding or wet grinding
  • Quantity and delivery time:
  • RPM and processing conditions:
  • Most manufacturers label their grinding wheels with the following information:
Abrasive Type150
Grit
N
Bonding
75
concentration
R
Binders
3.0
Abrasive layer thickness
D : Natural Diamond
SD : Synthetic Diamond
SDC : Synthetic metal clad diamonds
B : boron nitride
BC : Metal Cloaked Boron Nitride
#60
#80
#100
#150
#200
#270
#325
#400
#600
J / soft
L
N
P
R / hard
25
50
75
100
125
150
R:Resin bonding
M: Metal bonding
P: Electroforming
V: ceramic method
1.0mm
1.5mm
2.0mm
3.0mm
5.0mm
10.0mm
