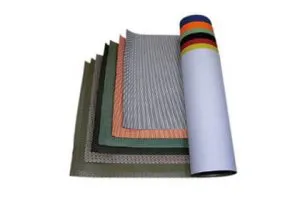

Diamond sanding cloth (cloth base)

{Welcome to inquire}

  • Diamond cloth is made by fixing diamond powder on canvas by electro-casting or resin bonding method, which used to be only available in traditional abrasive cloth.
  • Unlike traditional abrasive cloths, it has excellent cutting power and leaves a gap between the abrasive and the abrasive to escape the chips during grinding, so it is not easy to plug the eyes during grinding and the surface of the workpiece is very even after grinding.
  • Diamond cloth can be easily cut to the desired size with a blade or scissors to make the desired tool.
  • The grain size of the diamond cloth is marked with different colors for differentiation. It is available in sheet form and can also be backed with adhesive to form a band.

Use :

Diamond cloth is widely used, such as: marble, granite…. etc. stone processing.
Any hardness of hard steel, tungsten carbide, hard ceramic coated steel, hard ceramics, etc. Grinding, chamfering and edging of glass, all kinds of mold grinding and polishing.

Diamond sanding cloth (cloth base)

Unit : mm

GritColorBindersSize and Code
50 X 100100 X 1001,170 X 295690 X 295
#60GreenNickelXZ-1006NXZ-2006NXZ-5006N
#120BlackNickelXZ-1012NXZ-2012NXZ-5012N
#200RedNickelXZ-1020NXZ-2020NXZ-5020N
#400YellowNickelXZ-1040NXZ-2040NXZ-5040N
#600WhiteNickelXZ-1060NXZ-2060NXZ-5060N
#1000BlueNickelXZ-1100NXZ-2100NXZ-5100N
#500WhiteResinXZ-1050RXZ-2050RXZ-6050R
#1000BlueResinXZ-1100RXZ-2100RXZ-6100R
#8000OrangeResinXZ-1800RXZ-2800RXZ-6800R

Description :

  • Standard size 50 X 100mm and 100 X 100mm are with adhesive backing, please specify if not.
  • For other sizes or shapes of diamond cloth, please contact our sales staff.
