Diamond honing file Honing rod (Rod diameter: Ø1.0-1.4mm)
Diamond material has extremely high wear resistance, resulting in a long service life for the honing rod and reduced replacement frequency.
Application Areas:
- Suitable for internal hole polishing, trimming, piercing, internal hole processing, or other precision grinding needs in metalworking.
- Suitable for hard materials such as ceramics, glass, cemented carbide, and stone.
- Can be used for reaming drawing dies, screw dies, etc.
Product Specifications

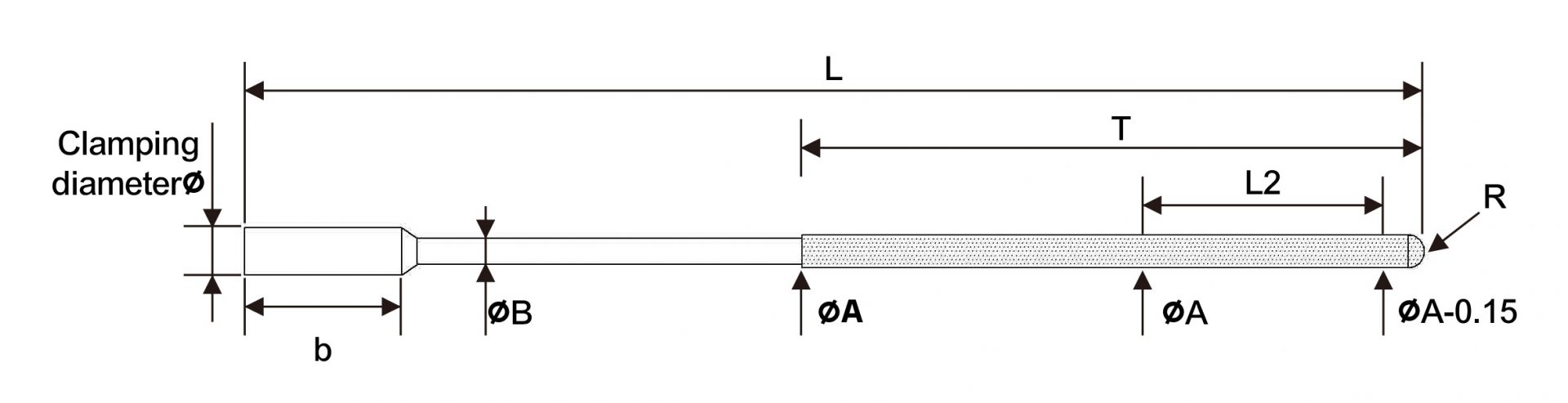

※The dotted areas in the drawing indicate where the abrasive is attached.
※All honing rods have a back taper (ØA) of -0.15 mm at the front end.
Unit: mm
ØA
O.D |
ØB
Shank |
Slope length L2 | T | L | Grit number | Clamping diameter Ø | Clamping length b |
1.0 | 0.70 | 50 | 80 | 150 | D150 | 2 | 20 |
1.1 | 0.80 | 50 | 80 | 150 | D150 | 2 | 20 |
1.2 | 0.90 | 50 | 80 | 150 | D150 | 2 | 20 |
1.3 | 1.00 | 50 | 80 | 150 | D150 | 2 | 20 |
1.4 | 1.10 | 50 | 80 | 150 | D150 | 2 | 20 |
