AR-600 Triple Function Ultrasonic Grinding Mac

$2 576.00

  • AR-600 is designed with high efficiency microprocessor for more stable operation and improved polishing efficiency.
  • Combines ultrasonic, brushed DC and brushless DC outputs to meet the needs of more versatile cell phone applications.
  • Brushless DC output up to 100 watts, brushed output 60 watts.
  • Advantages of brushless handpiece: high speed, high torque, long life, low noise, no need to replace carbon brushes and no dust produced by carbon brushes.
  • The standard equipment of this machine includes one ultrasonic handpiece (GS-H09) and one brush rotary handpiece (U-Lap35).
▲ Please contact customer service for accessory purchases, The shipping date is based on the time informed by customer service.
▲ Preferential discounts can be enjoyed for large orders, please contact customer service.
▲Taiwan orders are shipped within approximately 7-14 days.
▲Overseas orders are shipped within approximately 7-14 days. The actual delivery time depends on the courier company’s delivery situation.
- +

AR-600 Triple Function Ultrasonic Grinding Mac

Product Features:

  • AR-600 is designed with high efficiency microprocessor.
  • More stable operational performance
  • Improve polishing efficiency
  • AR-600 is designed with high efficiency microprocessor for more stable operation and improved polishing efficiency.
  • Combines ultrasonic, brushed DC and brushless DC outputs to meet the needs of more versatile cell phone applications.
  • Brushless DC output up to 100 watts, brushed output 60 watts.
  • Advantages of brushless handpiece: high speed, high torque, long life, low noise, no need to replace carbon brushes and no dust produced by carbon brushes.
  • The standard equipment of this machine includes one ultrasonic handpiece (GS-H09) and one brush rotary handpiece (U-Lap35).

Product specifications:

Power Controller
Power AC-90V ~ 250V, 50/60 Hz
Ultrasonic output 45watts
Vibration frequency 18 ~ 26 kHz
Amplitude 3 ~ 40 μm
Amplitude adjustment Automatic tracking
Power consumption 100 watts
Fuse 2A time-lag type
DC motor output 5 ~ 30V
Brushed output power Max. 60 watts
Brushless Output Power Max. 100 watts
Size 170x260x140mm
Weight 2.0 kg

AR-600 optional handpiece:

AR-600 Triple Function Ultrasonic Grinding Mac Model Specification
GS-H09 Ultrasonic handpiece
Maximum output: 45watts
Size: Ø33x146mm
Weight: 254g
AR-600 Triple Function Ultrasonic Grinding Mac Model Specification
U-Lap35 Electric rotary handpiece (DC brush type )
Speed: 35,000 rpm
Torque: 2.9 Ncm
Size: Ø29 x 152mm
Weight: 230g

Description :

◎ Optional Equipment

Application:

Basic Application Examples

AR-600 Triple Function Ultrasonic Grinding Mac AR-600 Triple Function Ultrasonic Grinding Mac AR-600 Triple Function Ultrasonic Grinding Mac AR-600 Triple Function Ultrasonic Grinding Mac
Mould finishing
Grinding
Slit & Groove Micromachining
PCB board circuit modification


AR-600 optional handpiece list:

AR-600 Triple Function Ultrasonic Grinding Mac

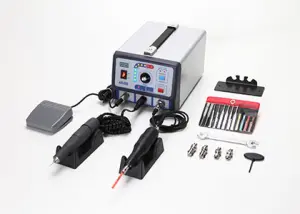

AR-600 Actual contents of the whole set (standard set):

Ultrasonic handpiece: AR-600 Triple Function Ultrasonic Grinding Mac ( GS – H09 ) Ø33 x 146 mm
Rotary handpiece AR-600 Triple Function Ultrasonic Grinding Mac ( U-Lap35 ) Ø 29 x 152 mm
Power cord AR-600 Triple Function Ultrasonic Grinding Mac 18AWGx3Cx180cm
Handpiece line AR-600 Triple Function Ultrasonic Grinding Mac 3Cx150cm
Hexagonal wrench AR-600 Triple Function Ultrasonic Grinding Mac HEX (62mm)
Handpiece holder AR-600 Triple Function Ultrasonic Grinding Mac 110x50x35 mm
Chuck removal rack AR-600 Triple Function Ultrasonic Grinding Mac Disassembly of 12mm keyway chuck
Wrench AR-600 Triple Function Ultrasonic Grinding Mac 140mm (10/12)
Chuck (Ø3.0mm) AR-600 Triple Function Ultrasonic Grinding Mac Designed for Ø3mm shank tools
Chuck (Ø3.0mm) AR-600 Triple Function Ultrasonic Grinding Mac Designed for 3mm thick oil stone
Chuck (1.0mm) AR-600 Triple Function Ultrasonic Grinding Mac Designed for 1mm thick oil stone/fiber oil stone
Foot switch AR-600 Triple Function Ultrasonic Grinding Mac Foot switch power cord length 150mm
